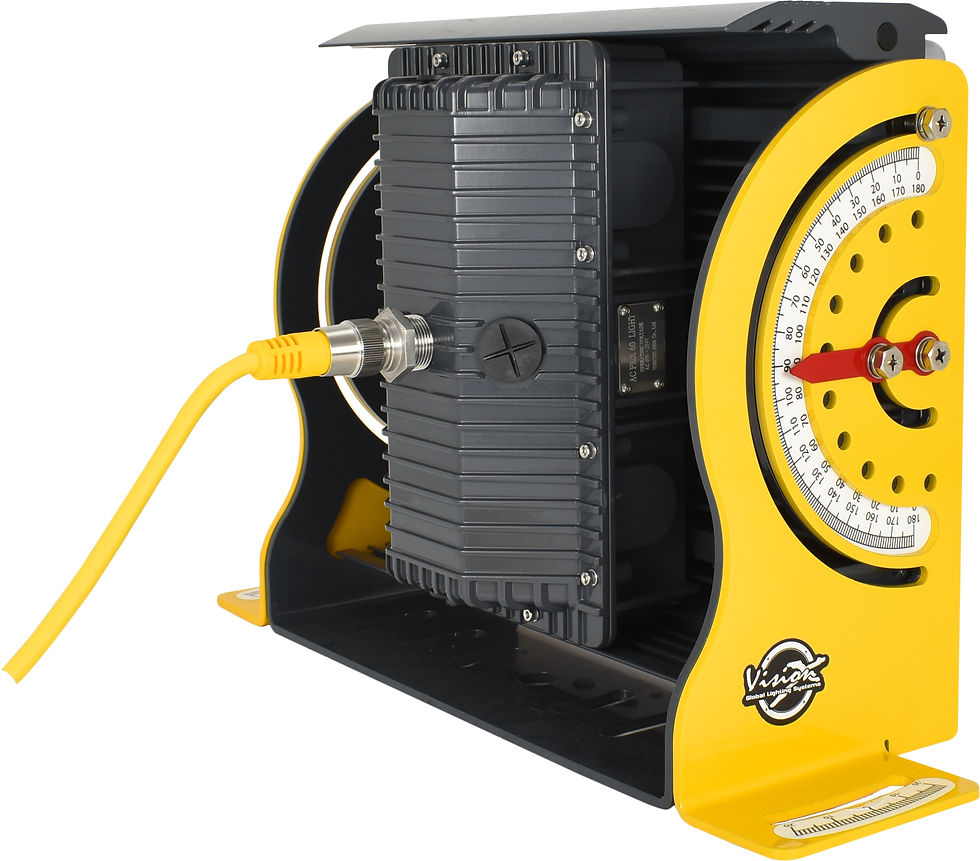

280W AC Work Area Lighting

280W AC Work Area Lighting

SKU: LSG066090PH

Product Spec Sheet

Installation Instructions


  • 1000 Watt Metal Halide Replacement
  • RAW LUMENS: 36,000 lm
  • Wattage: 280W
  • ProTrac Aiming System
  • Operating Voltage: 90-305V AC / 127-431V DC
  • IP68 / IP69K Rated



    Designed to directly bolt in, these OEM replacements will outperform the factory P&H lighting by over 80% on the effective work area. Simple Quick connect wiring allows for one-time wiring and no further electrical wiring to change the fixture. The 3D analysis allows for site-specific aiming with our patented ProTrac aiming system. Industry-leading LED light output, size, weight, and reliability for reduced unscheduled maintenance. Now equipped with an angle indicator arrow for easy angle alignment.


    • Dimensions:  15" x 13.37" x 7.16"
    • Fixture Weight: 54.6 lbs
    • Shipping Weight: 62.60 lbs
    • Mounting / Entries: (1) 3/4" NPT - TOP, (2) 3/4" NPT 90° - SIDES, (2) 3/4" NPT 45° - SIDES
    • Operating Voltage: 90-305V AC / 127-431V DC
    • Wattage: 280W
    • Operating Temp: -40°C ~ 60°C
    • Amp Draw: 2.43A @ 115V AC, 1.22A @ 230V AC, 1.01A @ 277V AC



    Extended Warranty: 3 Year for Commercial Markets


    • Proof of purchase is required to validate warranty and is valid from the original date of purchase. All products must be bought through a Vision X Authorized Dealer or one of their dealers/resellers.
    • Improper installation, accident, abuse, neglect and normal wear are not covered under warranty. Including:
      • Opening up light
      • Cutting connector or cord
      • Damage due to physical abuse
      • Lights operated in environments over 120 Fahrenheit
    • Warranty does not cover consumables such as bulbs, ballasts or broken glass
    • Warranted items will be repaired to working condition and returned without cosmetic alterations.
    • All customer warranties should be handled through the dealer/reseller the product was purchased from, customer is responsible for delivery to Vision X Returns in Washington.
    • If product is not under warranty, customers will be responsible for return shipping charges.
    • Additionally, non-warranted items can be repaired at the customer’s expense of parts and labor, at the discretion of Vision X Lighting, who will provide an estimated repair cost before proceeding with the repair.
